Wuhan Yijue Tengda Machinery Co., Ltd
8 Years
| Ask Lasest Price | |
| Brand Name : | YIJUE |
| Model Number : | YJ-TR1/TR2 |
| Certification : | TUV |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 30000/month |
| Delivery Time : | 5-8days |
Foundation Cutting Pick Tungsten Carbide Bullet Teeth Auger Drilling Teeth For Rotary Drill Rigs
They are mounted on augers, drilling buckets and coring barrels for ripping rocks in cobble and hard condition. We can design customized pick for different geological applications.
(1)Five spiral grooves and five external boss protruding teeth facilitate rotation of teeth to reduce eccentric wear, using 55-60 Embryoidand Alloy particle protector.
(2)Selection of high strength alloy steel after heat treatment.
(3)The 145 and 55 height of the embryo increased embryo impact
resistant ability, high strength construction to prevent broken
tooth.
| Product | Height(With/Without The Alloy Tip) | Widest Diameter | Alloy Size(Diameter/Height) |
| TR1 | 145/120 | 60 | 25/38 |
| TR2 | 142/120 | 60 | 23/28 |
| Remark: All measurements are in millimeters; we can also customize per your request. | |||
Tungsten Carbide Auger Teeth Bullet Teeth Auger Drilling Teeth For Rotary Drill Rig, Conical Foundation Drill Pick Bit Trench Drill Rock Drilling Auger Pick Round Shank Cutter Teeth
1. Our Bullet Teeth are the most reliable choice, with more impact
resistance, a stronger bond, and greater protection against tip
loss.
2. Improved tip profile improves rotation for longer tool life-with
less chipping in hard cuts.
3. Forged body design enhances wear characteristics to extend life
and tool rotation.
4. Our special design ensures you to avoid patent conflict from
Wirtgen or Betek or others.

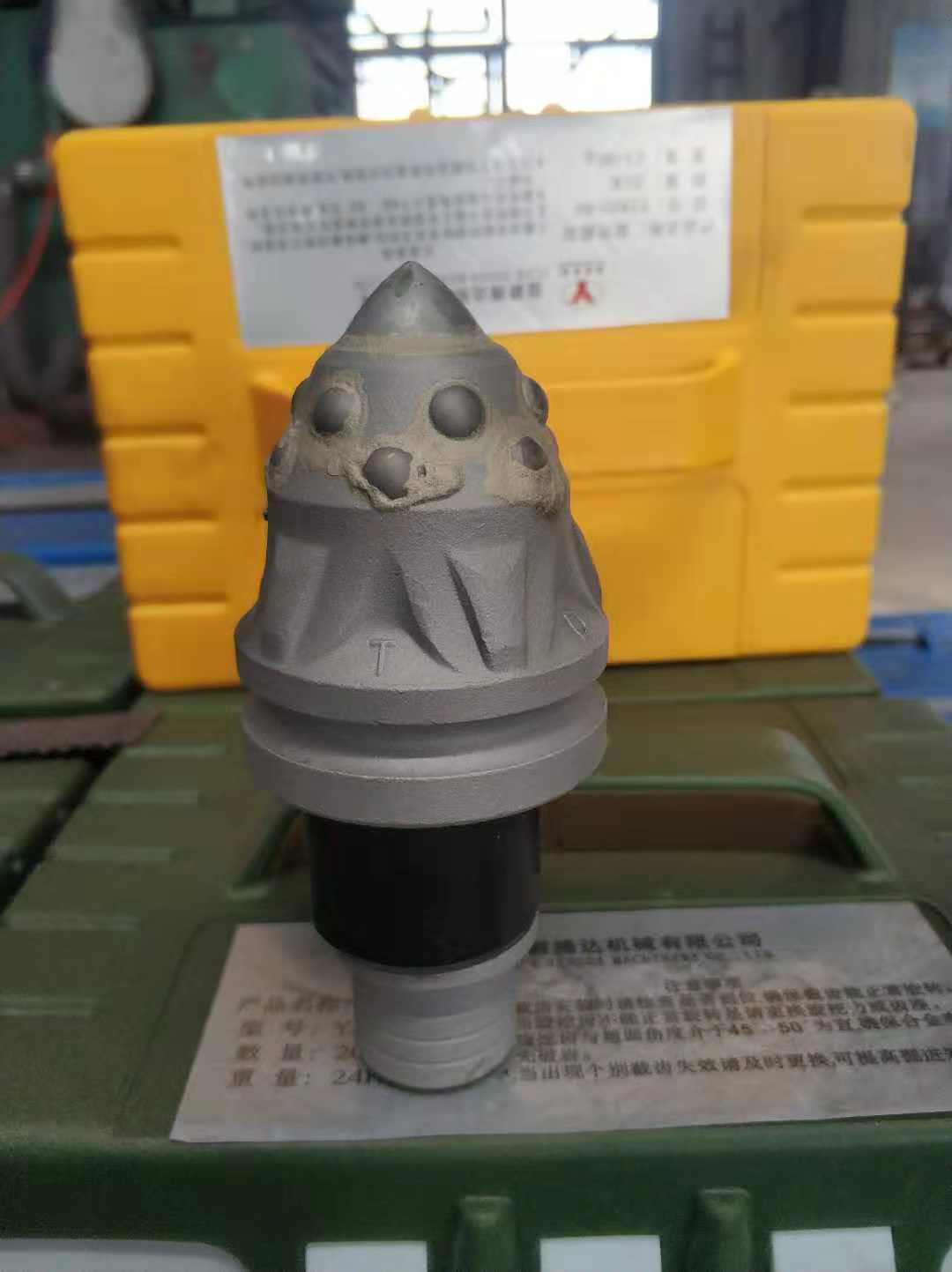

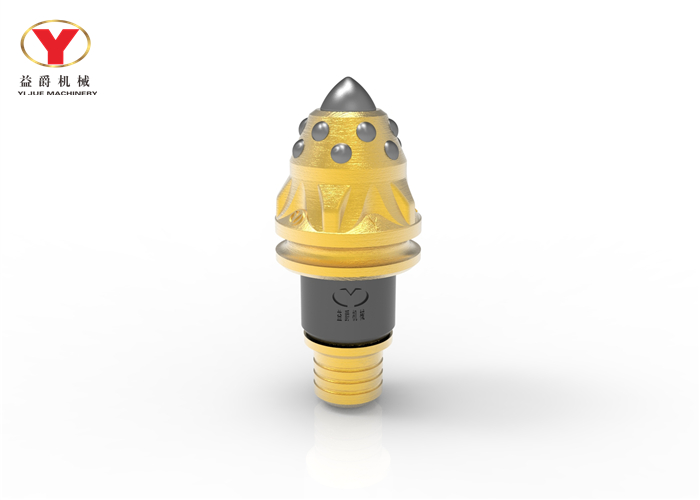

Detail Images
|
|
